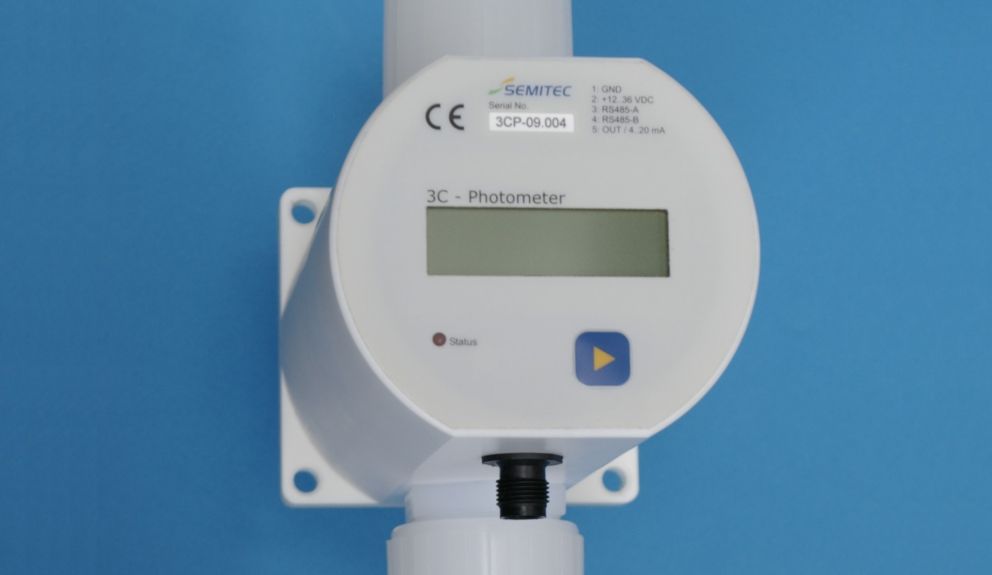

3C-Photometer – in-line Extinction-Photometer
The 3C-Photometer is a compact three-color extinction photometer for applications in ultrapure and chemical aggressive liquids. The extinction measurement at three wavelengths makes this sensor particular suitable for in-line process monitoring and control of complex and high concentrated multi-phase systems, like submicron dispersions, micro-emulsions or polishing slurries. Besides extinction and color measurement the sensor can be excellently adapted for in-line measurement of concentration and particle size of submicron dispersions.*
*The integrated evaluation unit with a LCD-display, the RS485 interface as well as the free programmable digital or analogue output minimizes additional hardware requirements and guarantees an easy connectivity to a PC or PLC.
Applications
- High dynamic extinction measurement
- Concentration measurement
- Quality monitoring of CMP slurries
- Particle sizing of nanoscaled dispersions
- Microemulsion in pharma and life science
- Ultra pure and chemical aggressive liquids
- Color measurement
Special Features
| Measurement parameters | Extinction, Extinction ratio, Calibrated concentration |
| Extinction range | 0…8 |
| Wavelength | 470, 630, 875 nm |
| Extinction length | 1, 4, 20 mm |
| max. Pressure | 5 bar |
| Degree of protection | IP54 |
| Temperature range | -10°C to +40°C |
| Dimensions | 150 x 90 x 180 |
| Process interface | Flaretek© 1”, ¾”, FNPT 1” |
| Power supply | 24 V DC (18-36 V), 200 mA |
| Communication | RS485 |
| Analogue Output | 4 – 20 mA |
| Wetted materials | PTFE, FPM, Sapphire, PFA |
| Fully plastic housing, no metallic parts |
