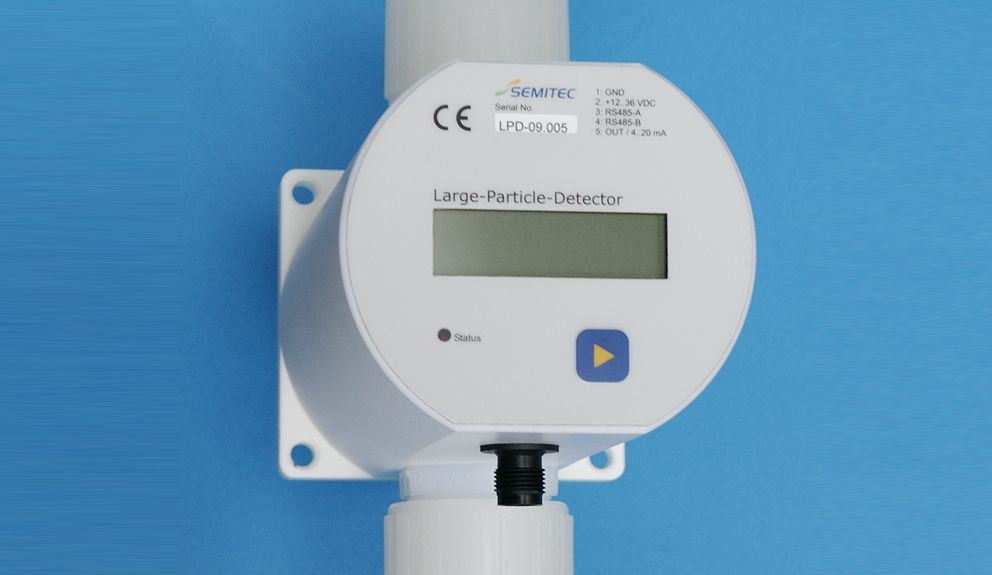

LPD - in line Large Particle Detector
The Large Particle Detector is a compact particle detector for applications in ultra pure and chemical aggressive media. The detection limit of 1 µm-particles makes this sensor particular suitable for in-line process monitoring and control of complex and high concentrated submicron dispersions, micro-emulsions, polishing slurries or pure fluids.*
*The integrated evaluation unit with a LCD-display, the RS485 interface as well as the free programmable digital or analogue output minimizes additional hardware requirements and guarantees an easy connectivity to a PC or PLC.
Applications
- Large particle detection in pure fluids and in slurries
- In-line quality monitoring of CMP slurries
- Prevention of micro scratches at polishing processes
- Filter control
- Optimization of filter lifetime
- Defect detection in supply systems
- Ultrapure and chemical aggressive liquids
Special Features
| Detection limit | 1µm |
| max. concentration | ca. 10.000 p/ml |
| max. Pressure | 5 bar |
| Degree of protection | IP54 |
| Temperature range | -10°C to +40°C |
| Dimensions | 150 x 90 x 180 |
| Process interface | Flaretek© 1”, ¾”, FNPT 1” |
| Power supply | 24 V DC (18-36 V), 200 mA |
| Communication | RS485 |
| Analogue Output | 4 – 20 mA |
| Wetted materials | PTFE, FPM, Sapphire, PFA |
| Fully plastic housing, no metallic parts |
